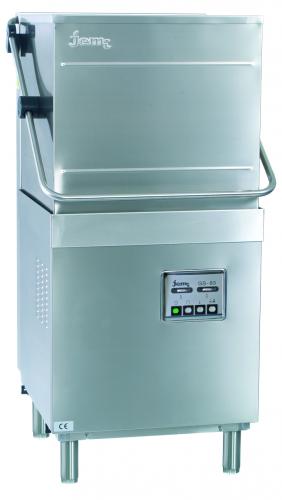

Jemi GS-85 Passthrough Dishwasher
The GS-85 is a high performance pass through Dishwasher.
Machine during quieter periods.1 or 2 minute wash and rinse cycle with an output of up to 640 / 960 plates per hour. Also room to fit pots and pans.
500 x 500 rack or 500 x 600 rack
Powerful ‘fixed wash system’ with our unique pull up quick release wash arms,
Fully welded pressed wash tanks with stainless steel strainers
Stainless steel upper and lower rotating rinse system for complete coverage,
Robust hood with safety system and auto start
Easy to operate controls
Constructed from AISI 304 stainless steel
Water consumption of 2.3 litres per cycle.
Clear analogue wash and rinse thermometers.
Overview
Dimensions (mm): 875 x 850 x 1580
Without handle / Open (mm): 765 x 760 x 2040
Usable height (mm): 500
Dimensions of rack (mm): 500 x 500 / 600 x 500
Wash cycle (min): 1-2
Output/hour: 640 – 690 plates
Total power (Kw): 10,5 – 11
Boiler heating element (Kw): 9
Tank heating element (Kw): 6
Wash pump power (Kw): 1,5 o 2
Voltage: 230 – 400 V / III / 50 – 60 Hz
Key features
Manually raised hood which allows for more space for loading dishes
Made of stainless-steel
Simple wall
Easy operation and maintenance
Minimum consumption of energy and water
Fixed washing system
Fixed washing arms to give coverage of all of the glasses/plates all of the time
Sanitising rinse system
Rounded corners for easy end of the day cleaning.
Double filter in tank
Characteristics
Double door
Double construction wall
Pressed tank
Bayonet washing arm
Rounded corner tank
Double filter in tank
Detergent inlet inside tank
Optional extras
Drainage pump
Back panel
Peristaltic detergent pump
Special voltage
Corner arrangement
Single phase
9000W heating element
