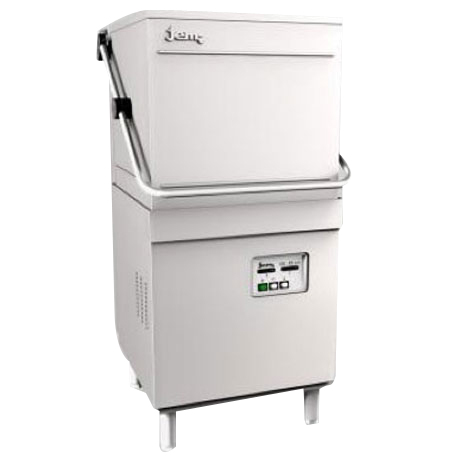

Jemi GS-83 ECO Passthrough Dishwasher

  • The GS-83 ECO is a high performance pass through Dishwasher.
  • 2 minute wash and rinse cycle with an output of up to 640 Plates  per hour.
  • Powerful ‘fixed wash system’ with our unique pull up quick release wash arms,
  • Fully welded pressed wash tanks with stainless steel strainers
  • Stainless steel upper and lower rotating rinse system for complete coverage,
  • Robust hood with safety system and auto start
  • Easy to operate controls
  • Constructed from AISI 304 stainless steel
  • Water consumption of 2.3 litres per cycle.
  • Clear analogue wash and rinse  thermometers.
GS-83 ECO Passthrough Dishwasher

Key Features

  • Manually raised hood which allows for more space for loading dishes
  • Made of stainless-steel
  • Simple wall
  • Easy operation and maintenance
  • Minimum consumption of energy and water
  • Fixed washing system
  • Fixed washing arms to give coverage of all of the glasses/plates all of the time
  • Sanitising rinse system
  • Rounded corners for easy end of the day cleaning.
    Double filter in tank

Optional Extras

  • Drainage pump
  • Back panel
  • Peristaltic detergent pump
  • Special voltage
  • Corner arrangement
GS-83 ECO Passthrough Dishwasher Certificates

Technical Specifications

Dimensions

  • Width 665mm / 775mm with handle
  • Depth 750mm
  • Height 1440mm / 1900mm with open hood
  • Usable height 400mm

Power Consumption

  • Wash pump power 736W
  • Tank heating element 4500W
  • Boiler heating element 6000W
  • Total power 6736W
  • Voltage (single phase) 230V / (three phase) 400V

Characteristics

  • Double door
  • Double construction wall
  • Pressed tank
  • Bayonet washing arm
  • Rounded corner tank
  • Double filter in tank
  • Detergent inlet inside tank
